Disposable Infant T-Piece Resuscitation Circuit

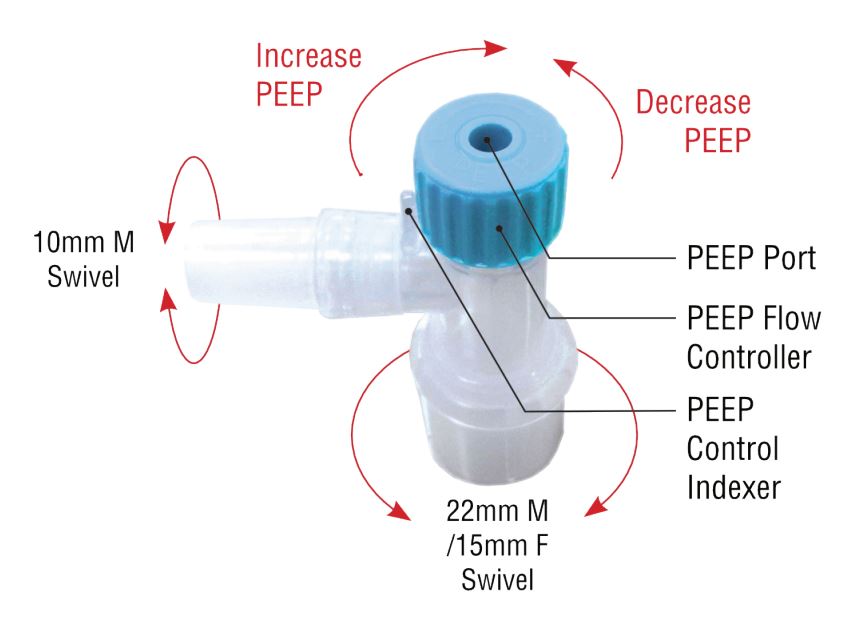

HOW THE PEEP FLOW CONTROLLER WORKS:
Adjustable PEEP Flow Controller Function on Infant Resuscitation Circuits
The adjustable PEEP function available on all TB resuscitation Series circuits is a simple function that can be easily operated by a medical professional.

The PEEP controller rotates to decrease or increase (±) PEEP pressure.
The PEEP port on top of the controller (if occluded) instigates PIP.
The PEEP control Indexer offers a physical adjustment "click" when rotating. Both the adaptor, tube and mask connections offer double swivel connections.

Double swivel connections located at both the mask and tubing ends increases patient comfort.

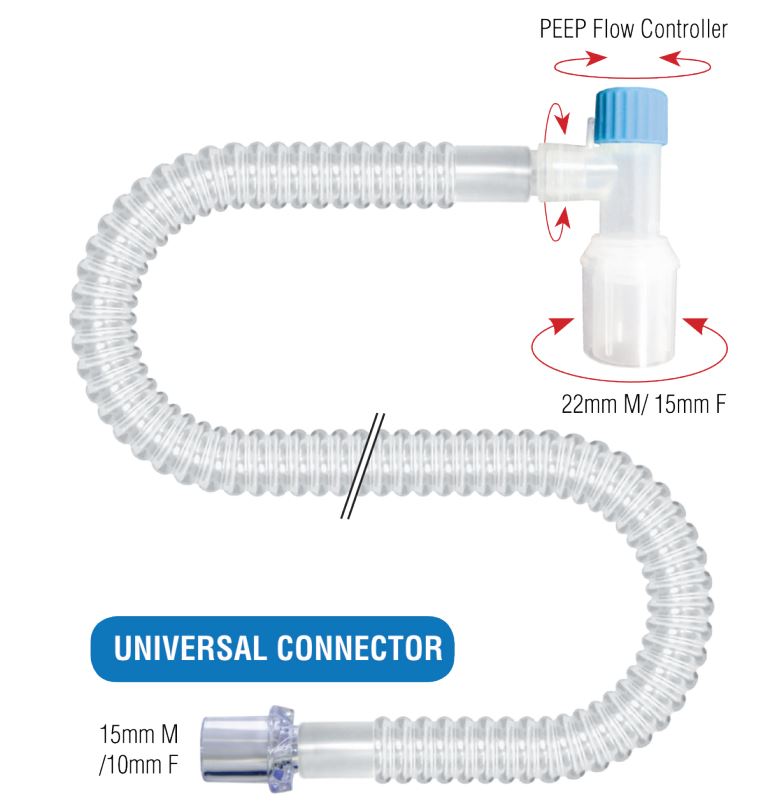

Disposable Infant T-Piece Resuscitation Circuit with Adjustable PEEP Flow Controller Function

Fits most Infant T-Piece Resuscitators (Universal 15mmM/1 OmmF Connector)
Adjustable PEEP Flow Controller
Double swivel connection at Mask and Tubing Ends
60"/1.5m Length 1 OmmlD Corrugated Tubing

Latex Free
DEHP Free
Easy to Use
PEEP Controller Indexer

TB2000
Disposable Infant T-Piece Resuscitation Circuit with Double Swivel Adjustable PEEP Flow Controller Function and 60"/1.5m Length 1 OmmlD Corrugated Tubing.
(PP) (PE) (PC)

TB2000A
Disposable Infant T-Piece Resuscitation Circuit with Adjustable PEEP Flow Controller Function (without Swivel) and 60"/1.5m Length 10mmlD Corrugated Tubing.
(PP) (PE) (PC)

TB2000-RM0

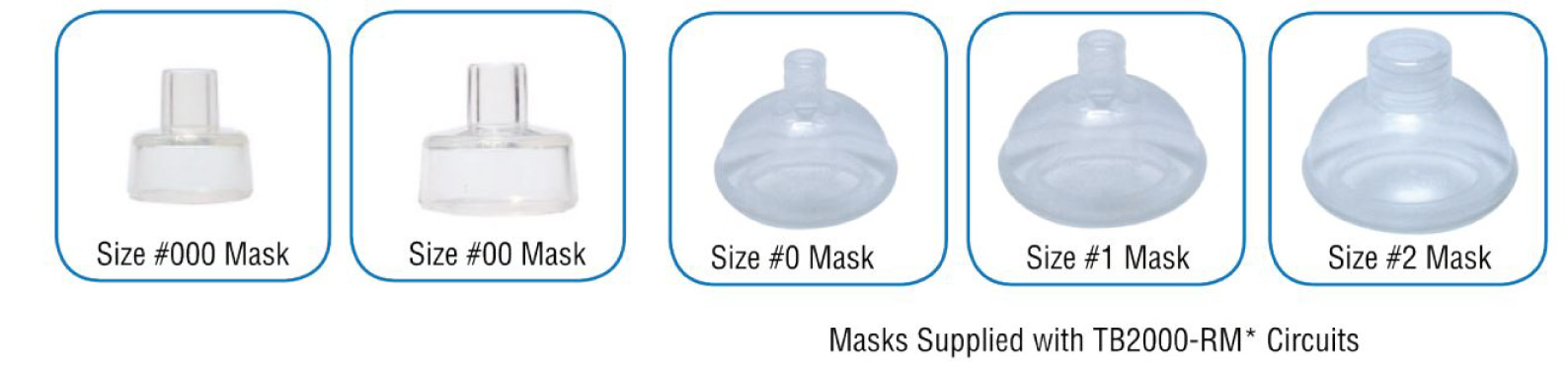

Disposable Infant T-Piece Resuscitation Circuit with Double Swivel Adjustable PEEP Flow Controller Function, 60"/1.5m Length 1 OmmlD Corrugated Tubing and Size #0 Silicone Donut Mask. (PP) (PE) (PC) (S)

TB2000-RM1
Disposable Infant T-Piece Resuscitation Circuit with Double Swivel Adjustable PEEP Flow Controller Function, 60"/1.5m Length 1 OmmlD Corrugated Tubing and Size #1 Silicone Donut Mask. (PP) (PE) (PC) (S)

TB2000-RM2
Disposable Infant T-Piece Resuscitation Circuit with Double Swivel Adjustable PEEP Flow Controller Function, 60"/1.5m Length 1 OmmlD Corrugated Tubing and Size #2 Silicone Donut Mask. (PP) (PE) (PC) (S)

WARNING! This item must be connected to a device that has a Pressure Relief Valve and must not be connected directly to a Flowmeter.

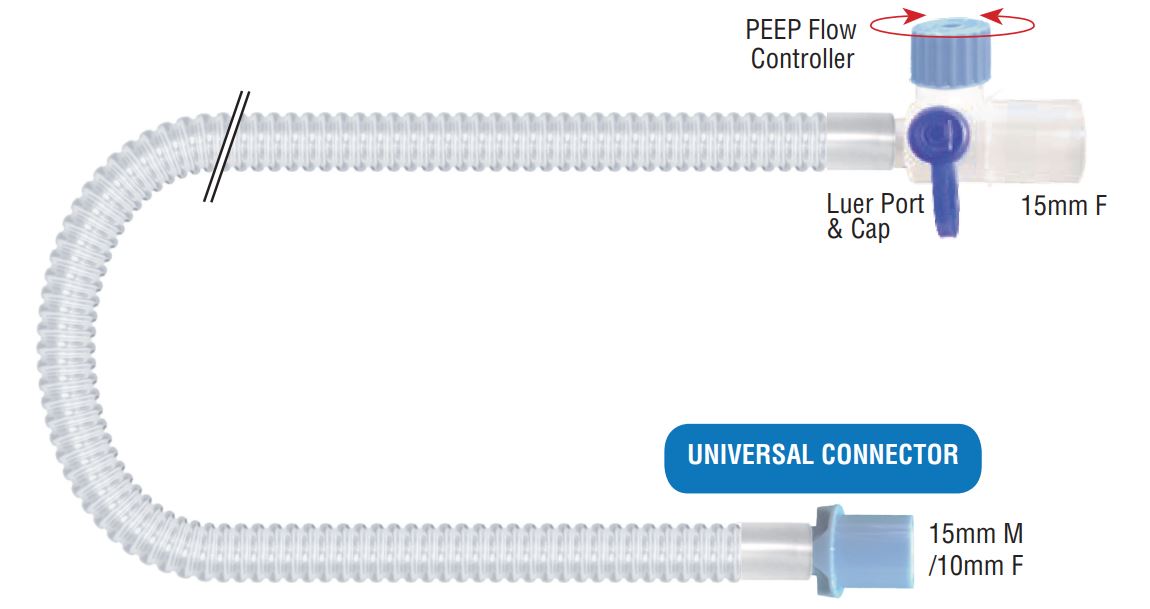

TB3000

Disposable Infant T-Piece Resuscitation Circuit with Adjustable PEEP Controller, Luer Port and Plug, Universal Connector and 10mmID CORRUGATED 60” / 1.5m Length Tubing

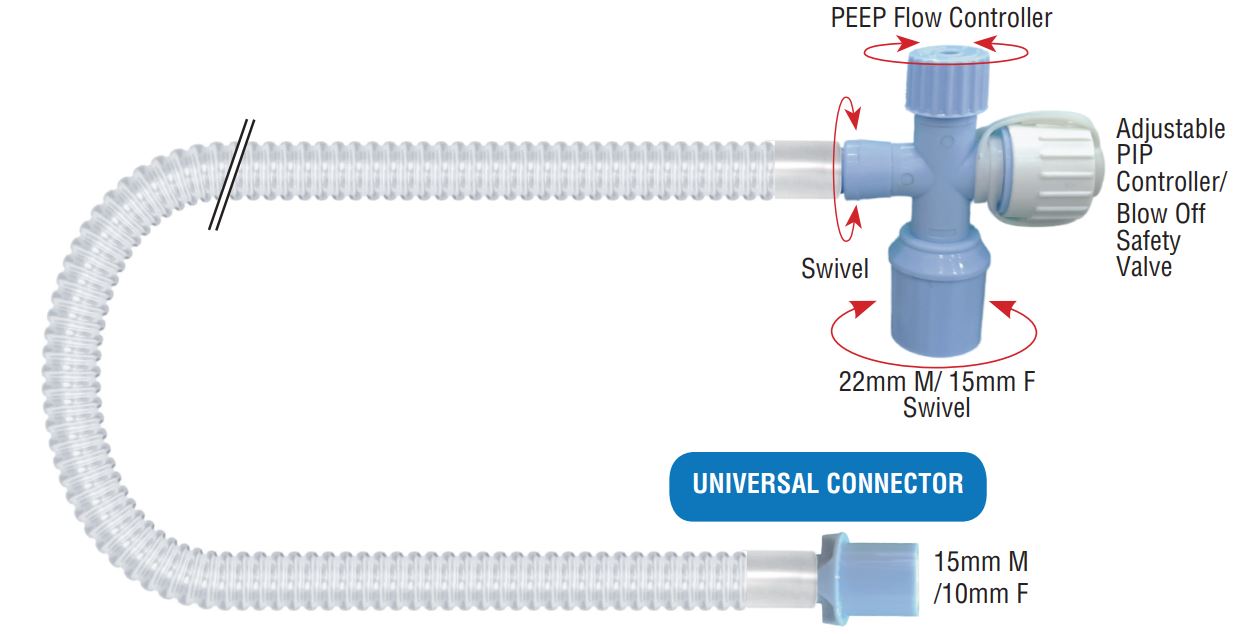

TB4000

Disposable Infant T-Piece Resuscitation Circuit with Adjustable PEEP Controller, Double Swivel Elbow, Adjustable Maximum Pressure Controller, Blow-off Pressure Relief Valve, Universal Connector and 10mmID CORRUGATED 60” / 1.5m Length Tubing

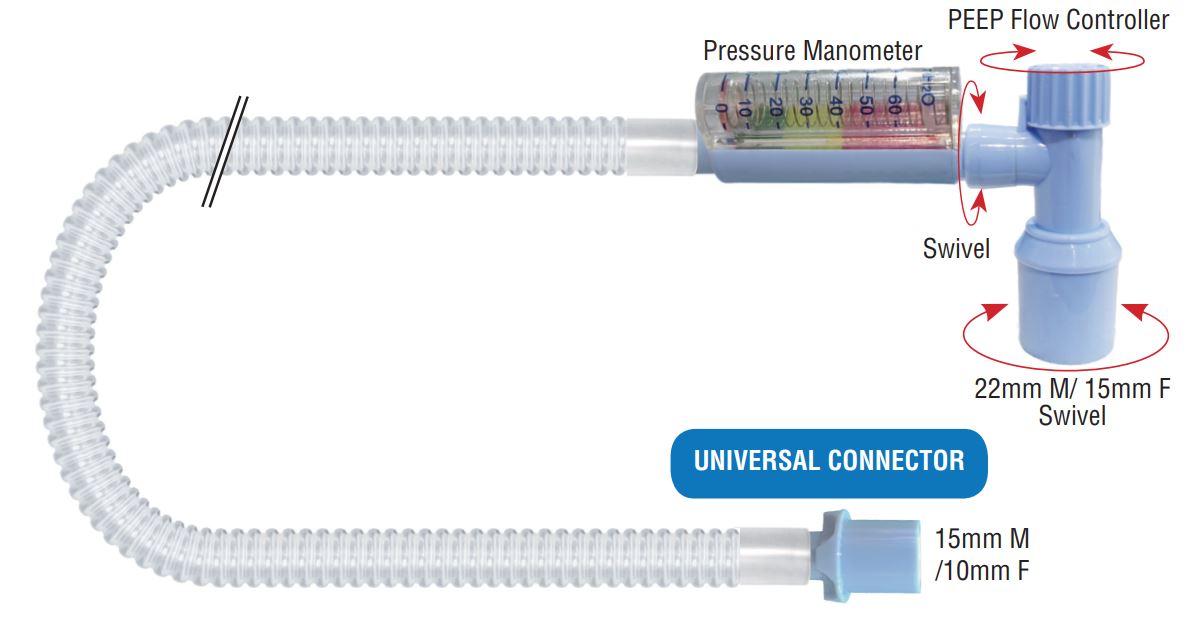

TB4500

Disposable Infant T-Piece Resuscitation Circuit with Adjustable PEEP Controller, Double Swivel Elbow, Pressure Manometer Gauge, Universal Connector and 10mmID CORRUGATED 60” / 1.5m Length Tubing

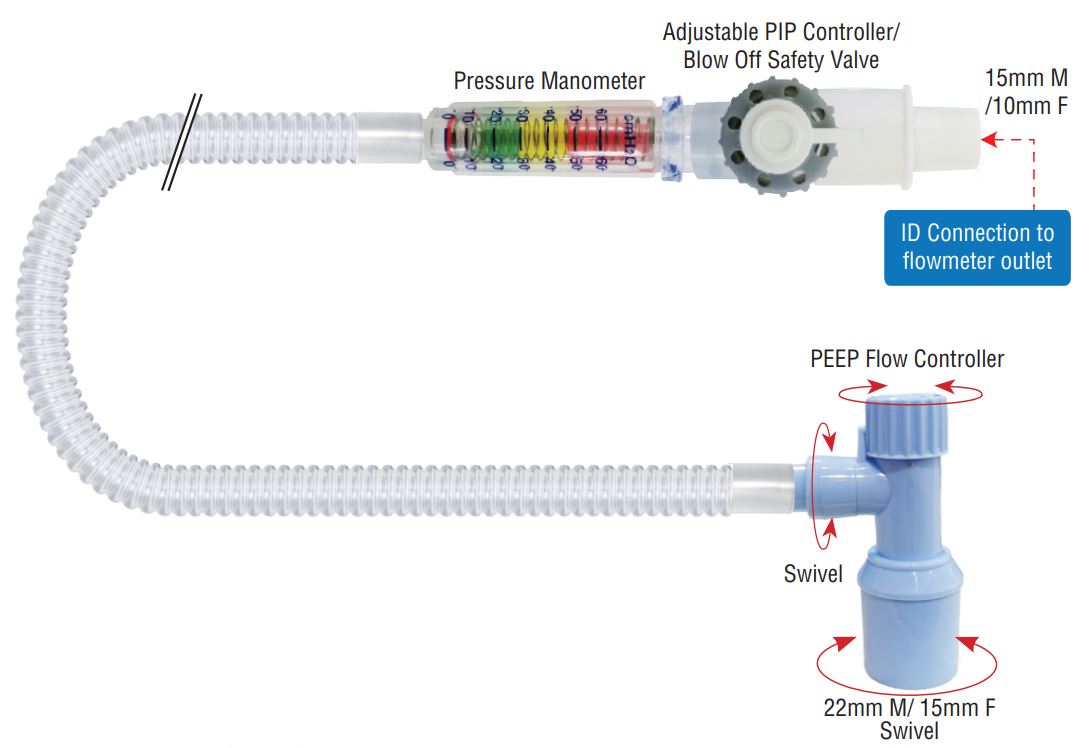

TB8200

Disposable Infant T-Piece Resuscitation Circuit with Adjustable PEEP Controller, Double Swivel Elbow, Adjustable Maximum Pressure Controller, Blow-off Pressure Relief Valve, Pressure Manometer and 10mmID CORRUGATED 60” / 1.5m Length Tubing

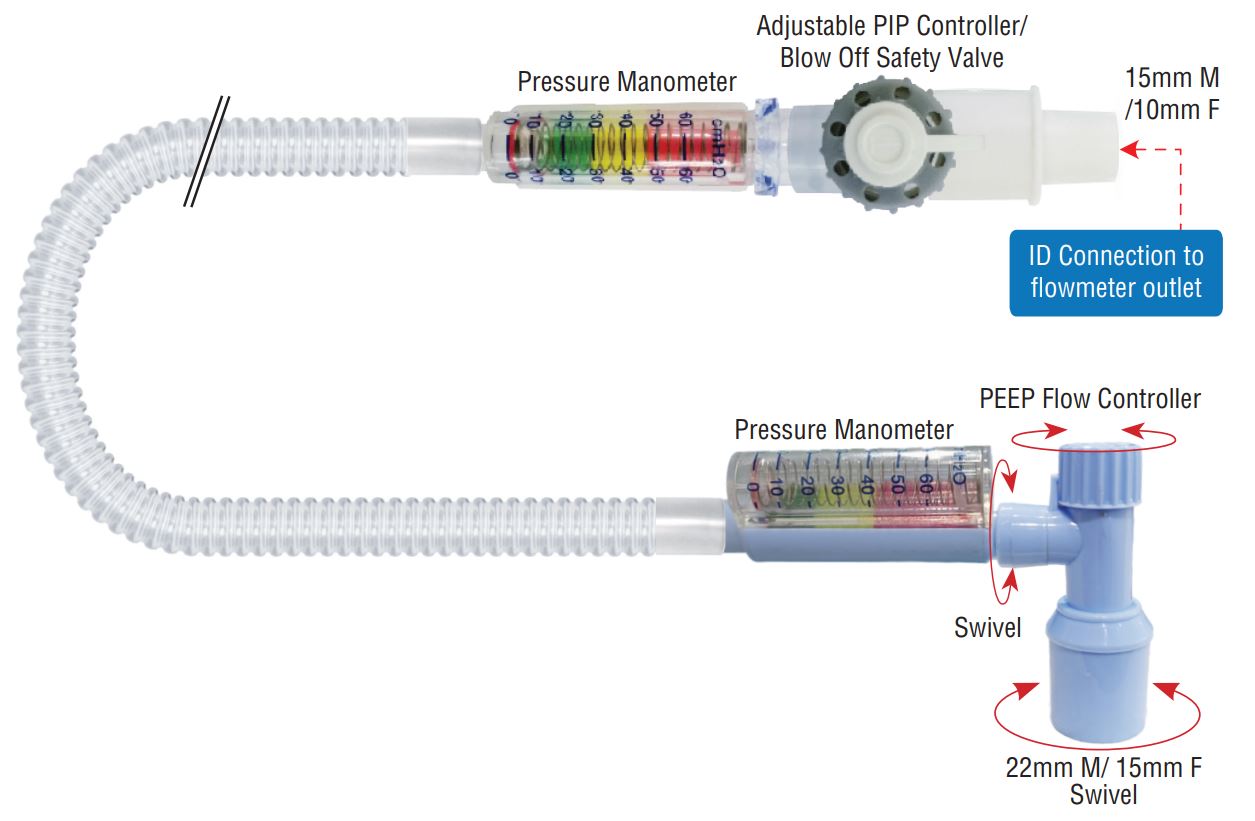

TB8450

Disposable Infant T-Piece Resuscitation Circuit with Adjustable PEEP Controller, Double Swivel Elbow, Double Pressure Manometer Gauge, adjustable Maximum Pressure Controller, Blow-off Pressure Relief Valve, Pressure Manometer and 10mmID CORRUGATED 60” / 1.5m Length Tubing

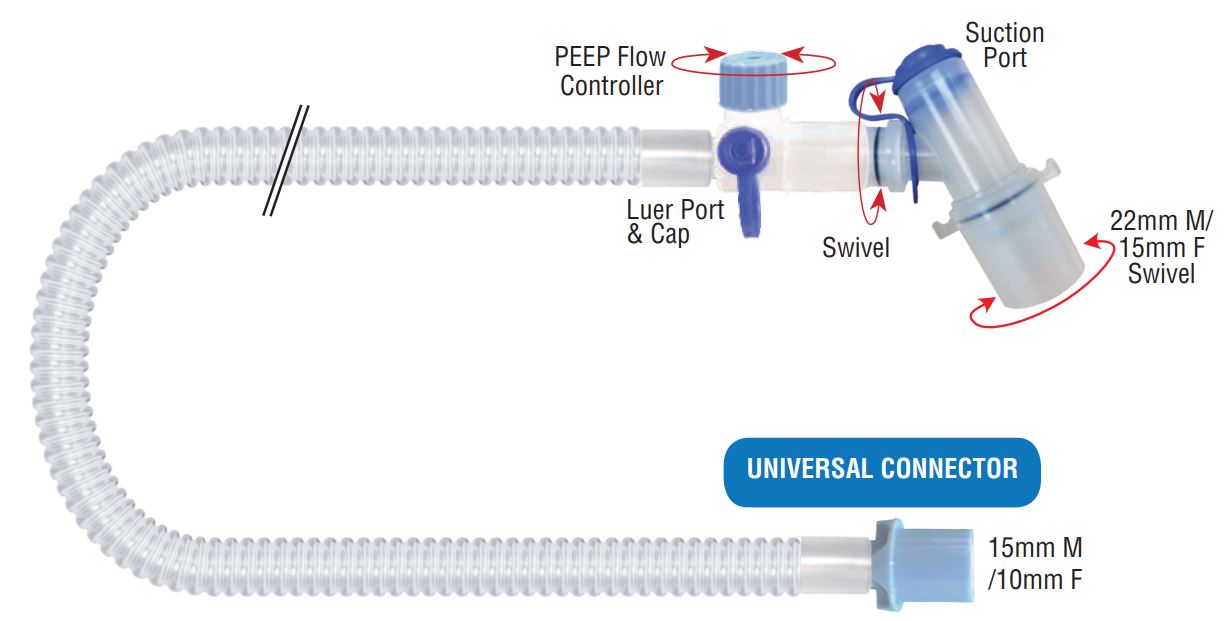

TB9000

Disposable Infant T-Piece Resuscitation Circuit with Adjustable PEEP Controller, Luer Port and Plug, Double Swivel Elbow, Suction Port, Universal Connector and 10mmID CORRUGATED 60” / 1.5m Length Tubing

Disposable Infant T-Piece Resuscitator

The i-Puff™ Disposable Infant T-Piece Resuscitator increases the ability to resuscitate more infants and provides accurate measurement of pressure values in the palm of your hand.

With the adjustable Peak Inspiratory Pressure control located near patent connector, it reduces the dead space to the blow off valve, which is normally located in resuscitation boxes placed a metre away from the baby.

By removing the need for the expensive traditional resuscitation ‘box’, the i-Puff™ is an inexpensive, easy to use addition to the hospital.

Included Features:

Double Swivel Elbow
Colour Coded Manometer Gauge
Adjustable PEEP Flow Controller
Adjustable PIP Flow Controller

Flowmeter Nipple
Light Weight
User Friendly
Economical

TB5000-W

i-Puff® Disposable Infant T-Piece Resuscitation Circuit with Adjustable PEEP Controller
Adjustable Maximum Pressure Controller, Double Swivel Elbow
Relief Blow Off Valve with Security Lock, Pressure Manometer Gauge

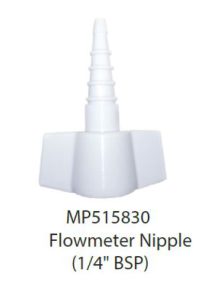

Universal Connector, Soft White Connector and White Flowmeter Nipple (1/4 BSP)
83”/2.1 Length Corrugated Tubing

TB5000-G

i-Puff® Disposable Infant T-Piece Resuscitation Circuit with Adjustable PEEP Controller
Adjustable Maximum Pressure Controller
Double Swivel Elbow, Relief Blow Off Valve with Security Lock
Pressure Manometer Gauge, Universal Connector

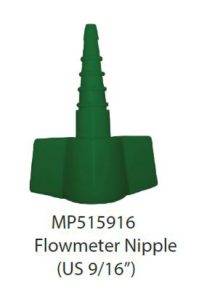

Soft White Connector and Green Flowmeter Nipple (US 9/16 UNF)
83”/2.1 Length Corrugated

TB5000-F

i-Puff® Disposable Infant T-Piece Resuscitation Circuit with Adjustable PEEP Controller
Adjustable Maximum Pressure Controller
Double Swivel Elbow
Relief Blow Off Valve with Security Lock
Pressure Manometer Gauge
Universal Connector

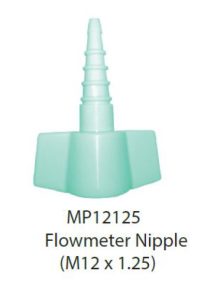

Soft White Connector and Light Green Flowmeter Nipple (M12x1.25)
83”/2.1 Length Corrugated Tubing
